| 원래 장소: | 중국 저장성 |
|---|---|
| 브랜드 이름: | Factory, OEM / ODM |
| 인증: | CE, UKCA, ROHS, REACH, IP68 |
| 모델 번호: | SSCG 시리즈 |
| 최소 주문 수량: | 200개 |
| 가격: | factory direct sales |
| 포장 세부 사항: | 표준 포장(요청 시 특별 포장도 가능) |
| 배달 시간: | 일반적으로 9-14일 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| 공급 능력: | 달 당 500,000개 부분 |
| 재료: | 스테인레스 스틸 유형 304, 316 또는 316L | 플라스틱 인서트: | UL 승인 폴리아미드 6(폴리아미드 6.6) |
|---|---|---|---|
| 밀봉 부분: | 내유성 NBR(EPDM, FKM/FPM, 실리콘 고무) | 가연성: | UL94 V-2 |
| 실: | EN 60423에 따르면 | 방수: | IP68 |

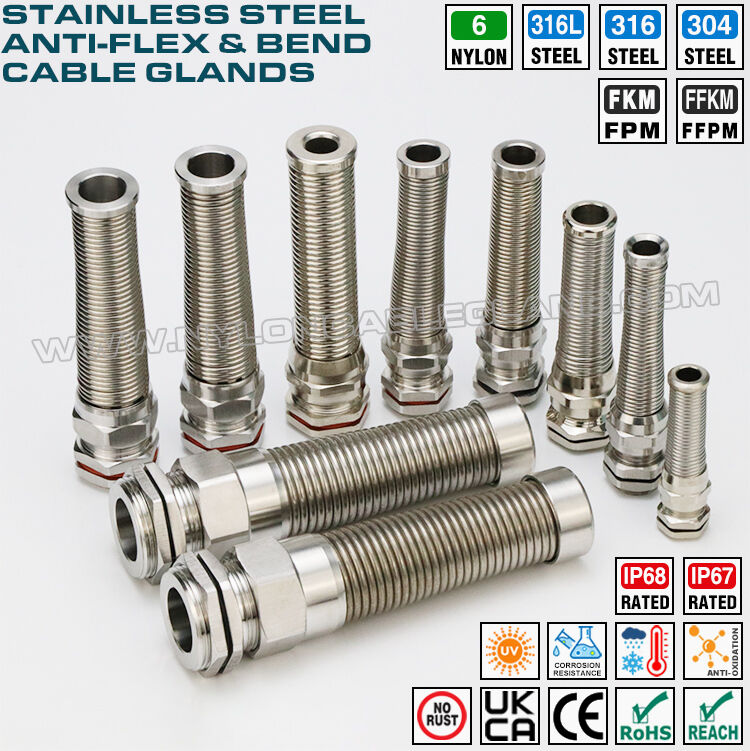

| 명세서: | M12, M16, M18, M20, M22, M25, M28, M30, M32, M37, M40, M47, M50 | 기능: | 파손을 방지하기 위해 과도한 굽힘으로부터 케이블을 보호하십시오. |
Description & Application:

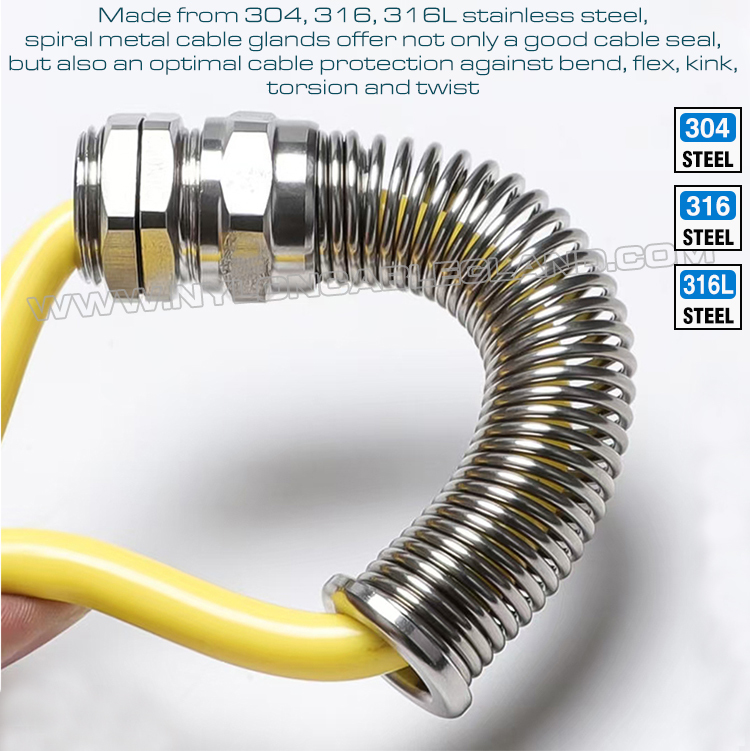

► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.
► Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.
► Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.
► Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.
► New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Specs: | M12, M16, M18, M20, M22, M25, M28, M30, M32, M37, M40, M47, M50 |

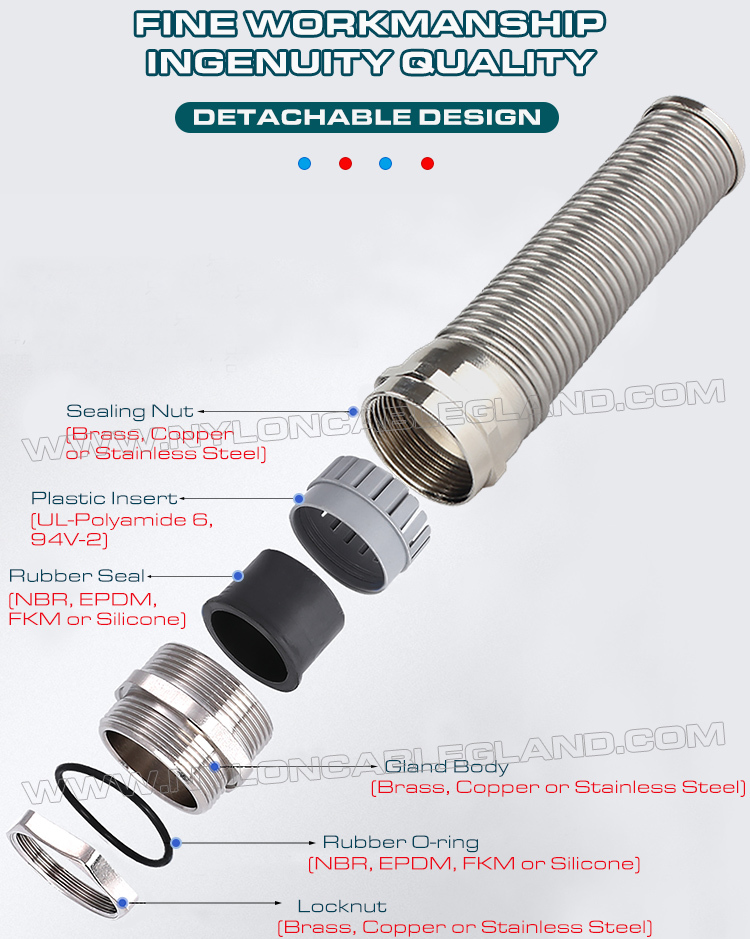

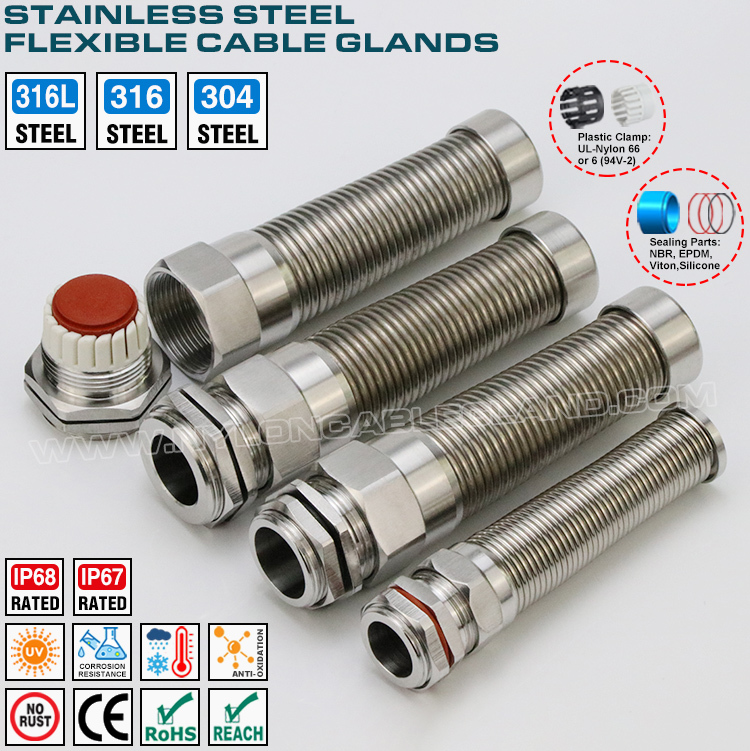

| Material: | Metallic parts are made in stainless steel 304, 316, 316L |
| Plastic insert is made from UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM | |
| Surface: | Polishing threatment |
| Color: | Natural |
| Certification: | CE, UKCA, ROHS, REACH, IP68 |
| Waterproofness: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Standard length |
| Thread type: | According to EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 500,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested |
