| 원래 장소: | 중국 저장성 |
|---|---|
| 브랜드 이름: | Factory or OEM / ODM |
| 인증: | CE, ROHS, REACH, IP68 |
| 모델 번호: | TSCG 시리즈 |
| 최소 주문 수량: | 500개 |
| 가격: | factory direct sale |
| 포장 세부 사항: | 1봉지당 100개(요청 시 특별 포장도 가능) |
| 배달 시간: | 일반적으로 10-14일 |
| 지불 조건: | T/T, L/C, 웨스턴 유니온 |
| 공급 능력: | 50,000개 부분 / 달 |
| 재료: | 스테인리스 스틸 인옥스 304/316/316L | 표면: | 광택처리 |
|---|---|---|---|
| 색상: | 실버 회색 | 플라스틱 인서트: | UL-폴리아미드(나일론) 6 |
| 가연성: | UL94에 따른 V-2 등급 | 밀봉하다: | FKM/FPM(FFKM/FFPM) 러버 |
| O- 링: | FKM/FPM(FFKM/FFPM) 러버 | 보호: | IP68은 평가되었습니다 |
| 명세서: | M16x1.5(5-10mm) | 특징:: | 방수, 내산성 및 내유성, 인발 저항성, UV 저항성, 노화 방지, 내구성, 우수한 성능, 긴 수명. |
| 기능: | 풀아웃 및 강한 변형 완화에 대한 추가 저항 제공 |
Main features:
♦ Saddle clamp: a distinct U-shaped or two-part clamp that fastens around the cable, providing extra mechanical grip and strain relief, essentially "saddling" the cable for maximum security.
♦ Traction relief (strain relief, pull relief): the main purpose is to grip the cable firmly, preventing tension or pulling from damaging internal wires or disconnecting the cables.
♦ Sealing: creates a tight seal (IP68) to prevent dust, water, oil, and other contaminants from entering the enclosure.

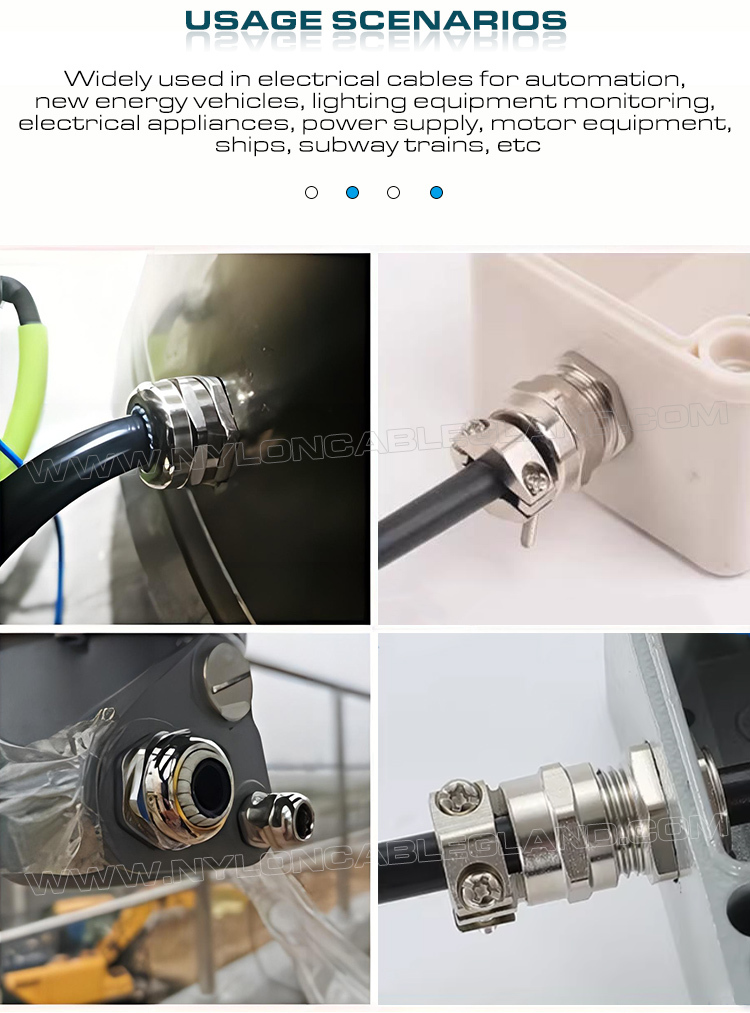

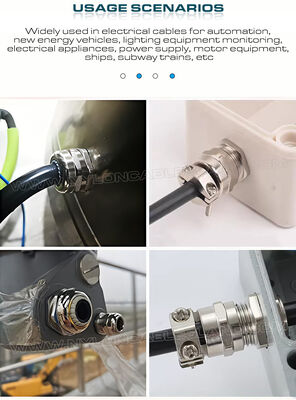

♦ Harsh environments: ideal for building sites, portable equipment, machinery, and electrical motors where vibration, impact, or rough handling is common.
♦ Mechanical security: secures the cable to the equipment or panel, providing a robust mechanical connection.
Information:
| Brand name: | Factory or OEM / ODM |
| Place of origin: | Zhejiang, China |
| Specification: | M16x1.5 (clamping range: 5-10mm) |

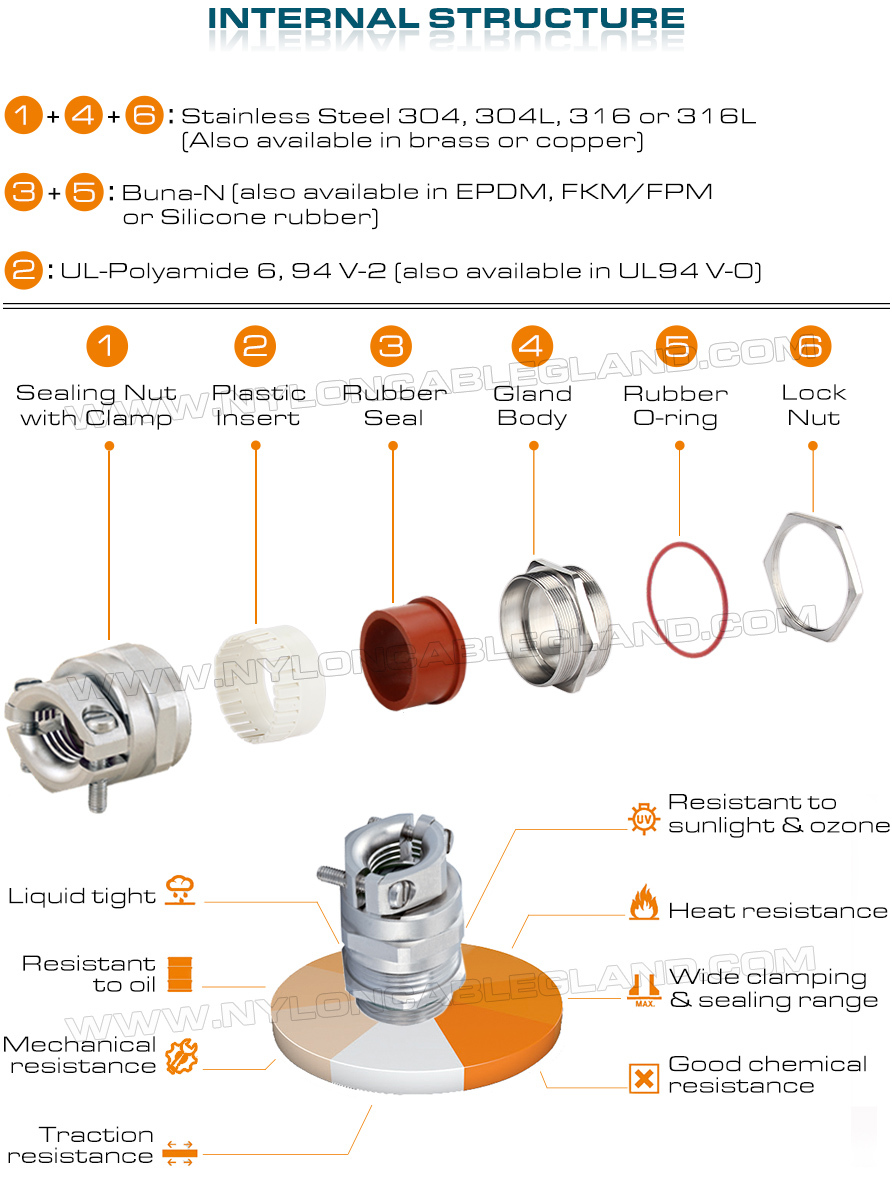

| Materials: | Stainless steel type 304, 316 or 316L for locknut, sealing nut and gland body |
| UL-polyamide 6, 94V-2 for plastic insert | |
| FKM / FPM (FFKM / FFPM) rubber for seals & O-rings | |
| Color: | Silver gray |
| Advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Short thread or long thread, both are available |
| Operation temp.: | Static: -40℃ to 100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Yes, available |
| Delivery time: | Normally 10-14 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested |
